PRODUCT INTRODUCTION
Galvalume Steel Coil
Thickness:0.16-0.8mm
Width:30-1250mm
Zinc coating:30-275g/㎡
Delivery time 7-25days
Surface: AFP(anti-finger) or passivation
PRODUCT PARAMETER
|
Product Name |
55% AL galvalume steel coil AZ 150g coating |
||
|
Place of Origin: |
Shandong, China |
Brand Name: |
JINGTAICOILS |
|
Thickness: |
0.16-0.8mm |
Width |
40-1250mm |
|
Standard: |
SGLCC |
Delivery time |
7-25days |
|
Coating: |
30-275g/㎡ |
Spangle Type: |
Regular |
|
Coil ID |
508mm/610mm |
Hardness: |
G550, G300(Full hard or soft material |
|
Grade |
DX51D+AZ |
Surface Treatment |
AFP(anti-finger) or passivation |
|
Raw Material |
Hot Rolled Steel Coil |
HS code |
72106100 |
|
Package |
Waterproof papers, Metal bank strap, Inner protective, Outer protective steel ring |
||
|
Application |
Roofing, Construction, building materials, door, construction |
||
PRODUCT DETAIL
1)what is galvalume steel coil?
Since its inception, the hot-dip galvalume steel coil has been widely used in various industries such as construction and home appliances. Due to the continuous expansion of the scope of use, the formability and various properties of the product continue to improve, so some properties are better than hot-dip galvanized steel coil.
The Hot-dip galvalume steel coil uses various strengths and thicknesses of cold-rolled steel coil sheet as the base material, and the AL-Zn composite galvalume steel sheet is obtained by hot-dip plating. Its composition is 55% aluminum, 43.5% zinc, 1.5% silicon, and appropriate trace elements.
2)Production process
Cold Rolled Steel Coil→Decoil→Entry Looper→Pre-Treatment→Annealing Furance→Zinc pot→Cooling Tower→Water Quanac Tank →Skin Pass→Tension Leveler→Passivation Machine→Exit Looper→Roller→Packing
1) Surface treatment:
Chromated / skin pass/ oiled/Anti-finger-AFP
2)Application
Construction: roofs, walls, garages, soundproof walls, pipes,s and modular houses, etc.
THE DIFFERENCE BETWEEN GALVANIZED STEEL AND GALVALUME STEEL
1. Different materials
Galvanized sheet: To prevent the surface of the steel sheet from being corrupted and prolong its service life, paint a zinc layer on the surface of the steel sheet.
Galvalume steel sheet: The surface is uniquely smooth, flat, and gorgeous starflower, and the base color is silver-white. Its surface coating comprises 55% aluminum, 43.5% zinc, and 1.5% silicon.
2. Different service life
The unique coating structure makes it have excellent corrosion resistance, and the average service life of the galvalume sheet is 2-4 times that of the ordinary galvanized sheet.
3. Characteristics of Galvalume/GL/Aluzinc steel sheet
-
Corrosion resistance: The atmospheric corrosion resistance and moisture gas corrosion resistance of the galvalume steel sheet are better than the galvanized steel sheet. It can be used in various internal and external building materials and parts.
-
Economical: It has lower production costs than both galvanized and aluminum sheets.
-
Heat reflectivity: The heat reflectivity of galvalume steel sheet is high, which is twice that of galvanized steel sheet. It is often used as a thermal insulation material.
TEST
-
Zinc coating test
-
Tensile test
-
Neutral salt spray test
-
Hardness test
-
Thickness test
-
Raw material test before production
PACKAGE AND LOADING

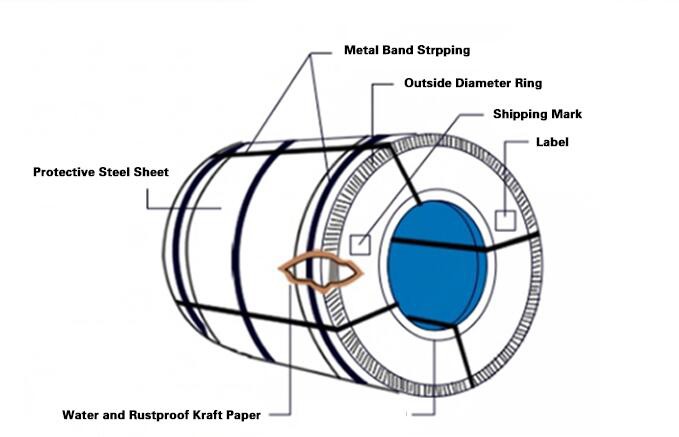

Package
moisture-proof paper, plastic film, galvanized iron sheet/galvalume iron sheet, metal steel strapping( at least 4 horizontal straps, 3 vertical strapping)
Shipment
-
Bulk ship and container ship
-
Bulk port: Tianjin
-
Container: Tianjin or Qingdao
Bulk goods precautions
-
A vertical package with a wood pallet is better for coil protection. Not easy to be deformed, not easy to be wet and rusted. But sea freight is higher than the horizontal package.
-
Horizontal package without a pallet, sea freight is cheaper. It is Affordable, but it is not good to protect coils compared with a vertical package.
FAQ
Q: How long is the service life?
A: It is 5-8 years for regular zinc coating-more zinc coating, more service life.
Q: When can I get the quotation?
A: We can quote within 30 minutes after the price update on the day. If you are very urgent to get the price, please call us by phone.
Q: What is your regular shipment?
A: Usually are containers or bulk, according to your requirements.
Q: Can I customize the products?
A: yes, we have many kinds of pattern coils; you could choose from our pattern or produce them according to your pictures.
Q: How about the delivery time?
A: Usually is 7-25 days. Regular size is more quickly.
